A heated snowmobile shield is designed to keep the rider's vision clear in cold and snowy conditions. Here's how it works:


  • Prevents Fogging: The shield has built-in heating elements that warm the surface, preventing fog from forming due to the rider's breath or temperature differences.
  • Reduces Ice Build-Up: It helps to melt any ice or frost that might accumulate on the shield, ensuring clear visibility.
  • Improves Comfort: By maintaining a clear view, it enhances the overall riding experience and safety.



Wiring Instructions - Snowmobile with Battery


Wiring a heated helmet to your snowmobile is straightforward.


Follow these steps:


  1. Locate the Accessory Plug: Remove the hood of your snowmobile and find the accessory plug, usually located near the wiring harness behind the headlight
  2. Prepare the Wiring Kit: Use the included wiring harness or purchase a heated shield wiring kit that includes a power cord with a fuse and connectors. Make sure the kit is compatible with your snowmobile model
  3. Connect the Wires:
  4. Splice the Power Cord: Use a wire splicer to connect the power cord from the kit to the accessory plug. Ensure you use shrink tubes with solder and adhesive for a secure connection
  5. Apply Dielectric Grease: Apply dielectric grease to the connections to prevent corrosion
  6. Secure the Wiring: Route the power cord along the handlebars and secure it with zip ties to prevent it from getting tangled or damaged.
  7. Test the Connection: Plug in your heated helmet and start your snowmobile to ensure the helmet heats up properly





Wiring Instructions - Snowmobile with Without Battery


Wiring a heated helmet shield to a snowmobile without a battery can be a bit tricky, but it's definitely doable. Here are some general steps you can follow at your own discretion:


  1. Locate Power Source: Identify a power source on your snowmobile. Common options include the headlight or thumb warmer wires.
  2. Prepare the Wires: Cut and strip the ends of the wires you will be connecting.
  3. Connect the Heated Shield Wires:
    1. Positive Wire: Connect the positive wire from the heated shield to the power source wire (e.g., headlight wire).
    2. Ground Wire: Connect the ground wire from the heated shield to a suitable ground point on the snowmobile (e.g., frame or ground wire from heated grips).
  4. Secure Connections: Use electrical tape or heat shrink tubing to secure and insulate the connections.
  5. Test the Shield: Plug in the heated shield and test it to ensure it's working properly.

For a more detailed guide, you might find these videos helpful:




Additional Power Source

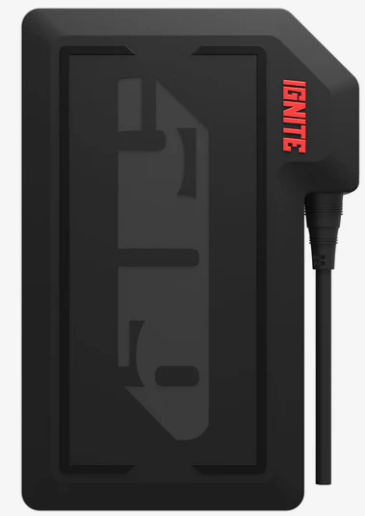

We're stoked to let you know that 509 offers the 12 Volt Ignite Power Pack for retail sale. Check out this link for available inventory.


https://ride509.com/products/12-volt-ignite-power-pack?variant=32907405852757&country=US&currency=USD&srsltid=AfmBOoq9d3QCK-hfYoz1P67MqmtWWYAnuf5ulQetmPE7L4FcAyOoOngfJfU
